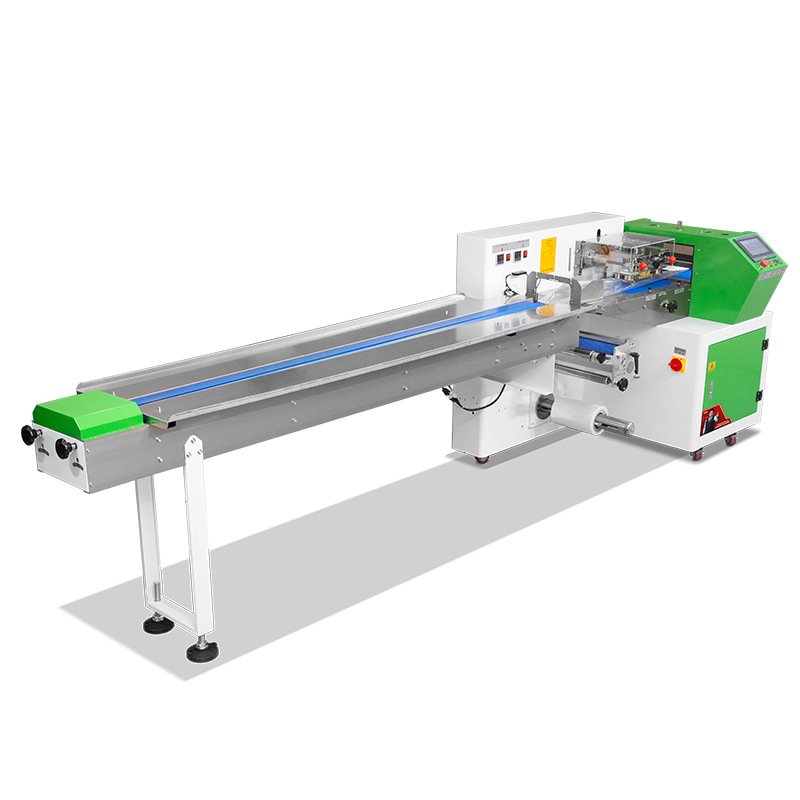

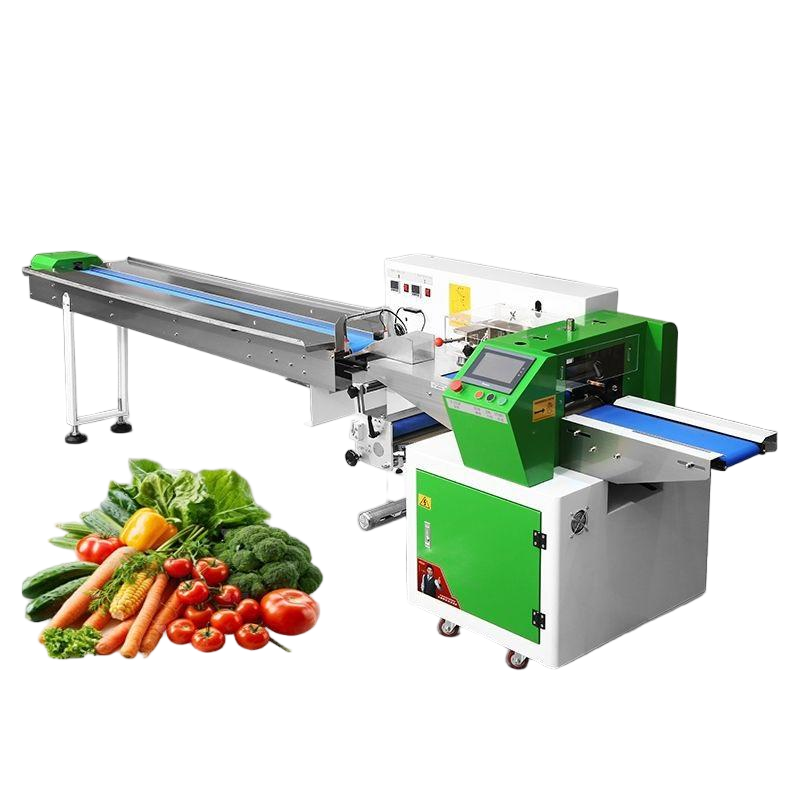

Automatic Flow Wrapper for Food, Daily Chemical & Pharmaceutical
Fully servo-driven high-speed horizontal flow wrap machine with packaging speeds up to 250 packs/min. Ideal for regular solid products in food, daily chemical, pharmaceutical and hardware industries. Precise ±1mm sealing accuracy, quick changeover, low noise and energy-saving design.
Additional information
Product Details
Key Specifications
| Item | Specification |
| Model | JY-350F / JY-350S series (customizable) |
| Film Material | Composite film (OPP/CPP, PET/PE, aluminum-plated film, stretch film, etc.) |
| Packing Size (L×W×H) | Length: 80–350 mm |
| Speed | 30–250 packs/min (depending on product and size) |
| Power Supply | 220V/380V, 50/60Hz, 2.5–4 kW |
| Machine Dimension | Approx. 3500 × 1000 × 1500 mm (varies by model) |
| Control System | Full servo (film feeding, end sealing, cutting) + PLC + 10″ color HMI |
| Bag Type | Back seal (standard); optional gusset, linked bags, hole punch hole, etc. |
| Applicable Products | Biscuits, bread, mooncakes, soap, blister packs, hardware, tissue, etc. |
Optional Accessories Date/lot coder, hopper, nitrogen flushing, finished product conveyor, metal detector interface.
Features & Advantages
- 100% Servo-Driven System Independent servo motors for film feeding, end sealing and cutting ensure perfect synchronization and ±1mm repeatability. Pattern alignment is accurate; changeover completed in minutes via touchscreen.
- Intelligent HMI Control Industrial PLC + 10-inch color touchscreen. 100+ recipe memory, real-time fault diagnosis, one-key product switch.
- Premium Components • Dual-cylinder balanced end sealer with imported heating elements and food-grade Teflon-coated knives • Mirror-polished 304 stainless steel former for smooth film flow and beautiful bag appearance • Precision ground ball screws and linear guides for micron-level positioning
- Wide Application Compatibility Quick former and hopper change adapts to various regular solid products from bakery, confectionery, daily chemicals, pharmaceuticals to hardware.
- Energy-Saving & Durable Robust carbon-steel frame with stress-relief treatment and electrostatic powder coating. Servo system saves ~30% power compared to traditional mechanical machines. Key components from world-leading brands guarantee 24/7 stable operation.
Typical Applications Food: bread, cakes, biscuits, instant noodles, chocolate, frozen food Daily Chemical: soap, wet wipes, sanitary napkins Pharmaceutical: blister packs, medical masks, small instrument kits Industrial: hardware parts, batteries, stationery
Service & Warranty Complete installation guidance, on-site training and lifetime technical support. 12-month warranty on core components.
Ready for immediate delivery. Contact us for customized solutions!
